BXMD53 Series Explosion proof Illumination Power Distribution Box

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
TENGDA
Model Number:
BXM(D)
Explosion proof:
indoorIP54,outdoorIP65
Hazardous:
division1&2,or20,21&22
Explosive gas atmosphers:
classIIA,IIB,IIC orinflammable dust environment
Temperature class:
T1-14/T5/T6
Applications:
Petroleum, chemical, aerospace, military
Type:
Support custom made
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Cartons,Wooden cases or others as you are required
Port
Ningbo or shanghai
Lead Time :
Shipped in 2 days after payment
Specification
Setting Information
Hazaedous
division1&2,or20,21,&22
Explosive gas atmosphers
class II A II B II C or inflammable dust environment
parameter
indoor or outdoor(IP54,IP65*)
Temperature class
T1-T4/T5/T6
Applications
widely using in fields of oil,chemical industry,spaceflight war ind-ustru and so on
type
Support for custom
Product Description

Product Details

1.Enclosure is cast with aluminum alloy. Surface is sprayed with plastic by high pressure static.


2.With the body and cover joint for labyrinth structure, sealing strip use high temperature resistant, anti-aging silicon rubber, the control box has a good waterproof, dust-proof performance.

Product Details

3.Increased safety enclosure, the main structure can be fixed by user’s requirement. Built-in explosion-proof indicates lamp, ammeter, voltmeter button and transfer switch, etc.


Product Details

4.Explosion-proof element is easy installation of it guide rail type structure can quickly installed in guide rail, convenient installation, maintenance and repairing.

5.The inside components can be arranged by user’s requirement.

Product Details

6.Stainless steel fasteners exposed to prevent off structure, prevent to open the cover screw fall off, easy installation and maintenance.

7.Wiring with steel tube or cable.

Type
Rated voltage(V)
Rated current of main circuit(A)
Branch number
Switch number of main circuit
Branch current(A)
BXM(D)53-4
380
220
60-250
4

 1
BXM(D)53-6
6
3
BXM(D)53-8
8
5
BXM(D)53-10
10
10
BXM(D)53-12
12
15
BXM(D)53-4k
4
1
25
BXM(D)53-6k
6
32
BXM(D)53-8k
8
40
BXM(D)53-12k
12
60

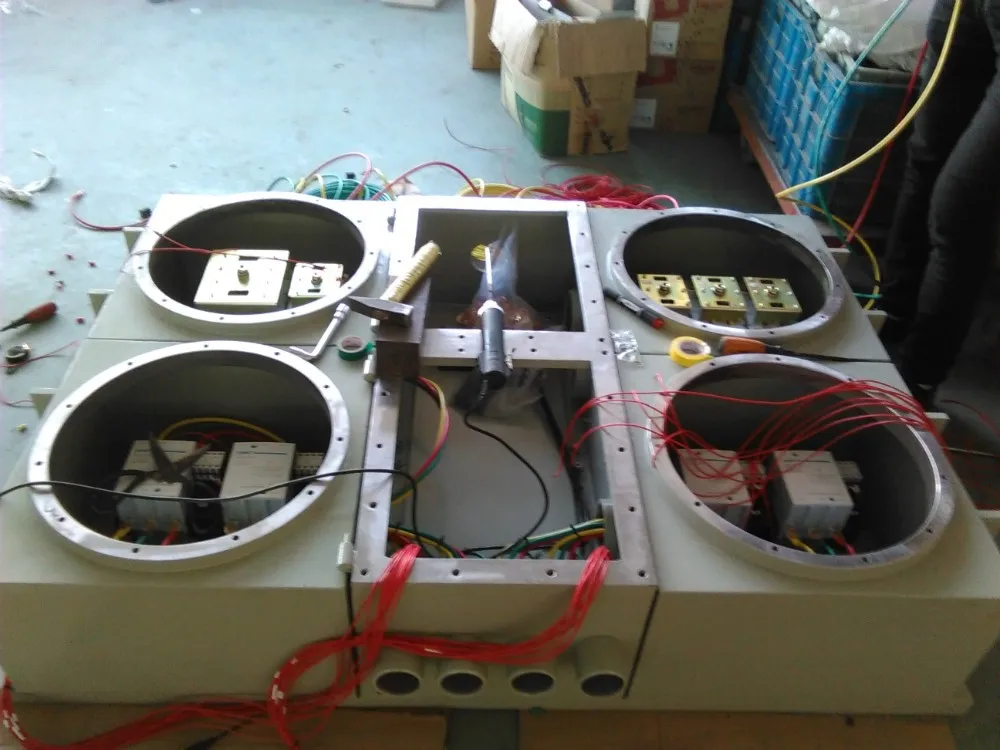

Installation Process
uses
Certifications
Company Information
FAQ

The company supports the distribution cabinets custom, detailed parameters, please ask customer service.
